Product Overview

The Williams AV DWS PCS 3 400 RCH is a rechargeable personal communication system built on the Digi-Wave 400 digital spread-spectrum platform, pairing one DLT 400 transceiver with one DLR 400 RCH receiver. It is a one-to-one wireless listening system for assistive listening, interpretation, instruction, and staff support, where a talker wears the transceiver with the included lapel microphone and a listener receives clear digital audio through the EAR 041 earphone. Operating license-free on the 2.4 GHz band with frequency hopping, the kit needs no installation or base station and packs into the included carry case.

Product Description

The Digi-Wave 400 Series is a digital spread-spectrum (DSS), simultaneous two-way wireless communication system. It makes hearing easier in everyday situations by reducing background noise and compensating for poor room acoustics or distance from the sound source the core problem in classrooms, courtrooms, hospitals, and meeting spaces. The frequency-hopping algorithm avoids interference from Wi-Fi and other 2.4 GHz devices, and optional 87+128-bit encryption with a PIN code and settings lock secures the link where privacy matters.

The talker’s DLT 400 transceiver accepts the included lapel microphone through its 3.5 mm mic input (or uses its built-in mic), while the listener’s DLR 400 RCH receiver drives the included EAR 041 isolation earphone, a neckloop for hearing aid telecoil users, or other 3.5 mm listening accessories. Both units run on internal lithium polymer batteries up to 16 hours of talk time on the transceiver and up to 32 hours of listening on the receiver and recharge over USB-C in roughly five hours using the included power kit.

Because it is a platform rather than a closed pair, the system grows with your needs: add DLR 400 receivers for more listeners, or more DLT 400 transceivers for two-way intercom with up to six simultaneous talkers and interpretation supporting one floor language plus up to 14 translated languages. Operating range reaches up to 900 ft (274 m) depending on site conditions.

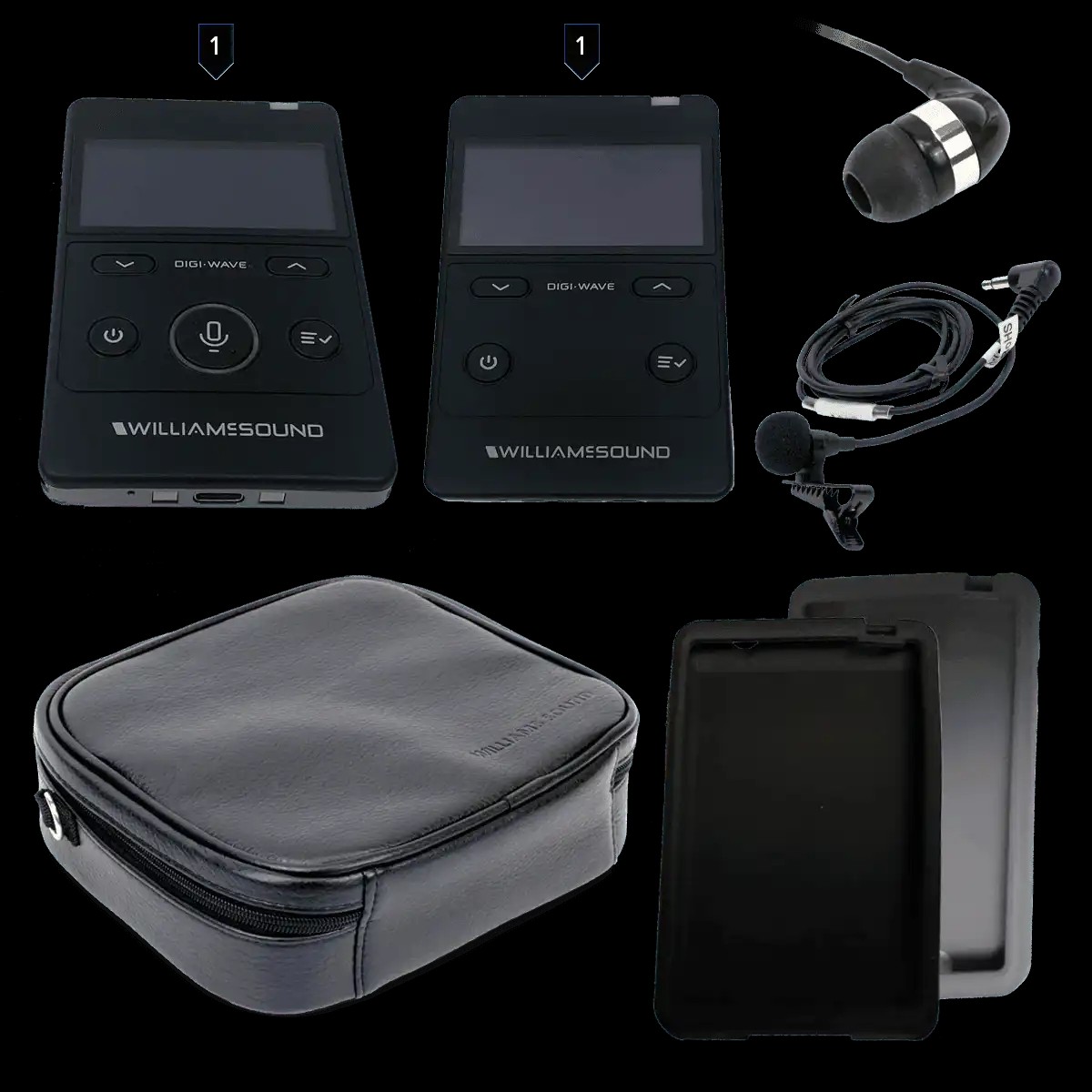

System Includes

(1) DLT 400 transceiver
(1) DLR 400 RCH receiver
(1) lapel microphone
(1) EAR 041 earphone
(2) DWS ACC PAC4
(1) CCS 043 system carry case
(1) CCS 061 GR grey silicone skin
(1) CCS 061 BK black silicone skin

How It Works

If both users need to talk, see the DWS PCS 2 400 dual-transceiver system, or browse the full Williams AV assistive listening collection at Creation Networks.

Key Features

• Complete Talker-Listener Kit One DLT 400 transceiver, one DLR 400 RCH receiver, lapel microphone, and earphone cover a one-to-one application out of the box.
• Rechargeable Operation Internal lithium polymer batteries deliver up to 16 hours of talk time and 32 hours of listening, recharging over USB-C in about five hours.
• Digital Spread-Spectrum RF Frequency-hopping operation on the license-free 2.4 GHz ISM band avoids interference without FCC licensing.
• Noise-Reducing Listening Direct-to-ear digital audio compensates for background noise, distance, and poor room acoustics.
• Encrypted Transmission Optional 87+128-bit encryption, a secure PIN code, and a settings lock protect private conversations.
• Expandable Platform Add receivers for more listeners or transceivers for two-way intercom with up to six simultaneous talkers.
• Long Operating Range Coverage extends up to 900 ft (274 m) depending on environmental conditions.
• OLED Status Displays Both units show channel, group, and battery information for fast setup and troubleshooting.
• Travel-Ready Package The CCS 043 carry case and silicone skins protect the units between deployments.

Typical Applications

• Training room
• Conference room
• House of worship
• Government space
• Commercial meeting space

Technical Specifications

DLT 400 Transceiver

DLR 400 RCH Receiver

EAR 041 Earphone

DW ACC PAC Power Kit

Frequently Asked Questions

Who is the PCS 3 400 RCH designed for?

It is a one-to-one kit: a talker with the transceiver and lapel microphone, and a listener with the receiver and earphone. Common uses include assistive listening for an individual, one-on-one interpretation, instruction, and discreet staff support.

Does the system require an FCC license?

No. It operates license-free on the 2.4 GHz ISM band using digital spread-spectrum frequency hopping, with no frequency coordination required.

Can I expand the system later?

Yes. Add DLR 400 RCH or DLR 400 ALK receivers for more listeners, or DLT 400 transceivers for two-way intercom with up to six simultaneous talkers and interpretation supporting up to 14 translated languages.

Is it compatible with hearing aids?

The receiver’s 3.5 mm output supports earphones, headphones, and neckloops; a telecoil-compatible neckloop (sold separately) couples audio directly to hearing aids with T-coils.

How do the units charge?

Both transceiver and receiver charge over USB-C in approximately five hours using the included power kits, and are also compatible with the optional CHG 412 12-bay drop-in charger.

Is the link private?

Optional 87+128-bit encryption, an encryption PIN, and a settings lock are available for confidential applications such as courtrooms and healthcare settings.

What warranty applies?

Williams AV covers the transceiver and receiver with a 2-year warranty against component failure and manufacturing defects, with 6 months on internal batteries and 90 days on power accessories.
