Product Overview

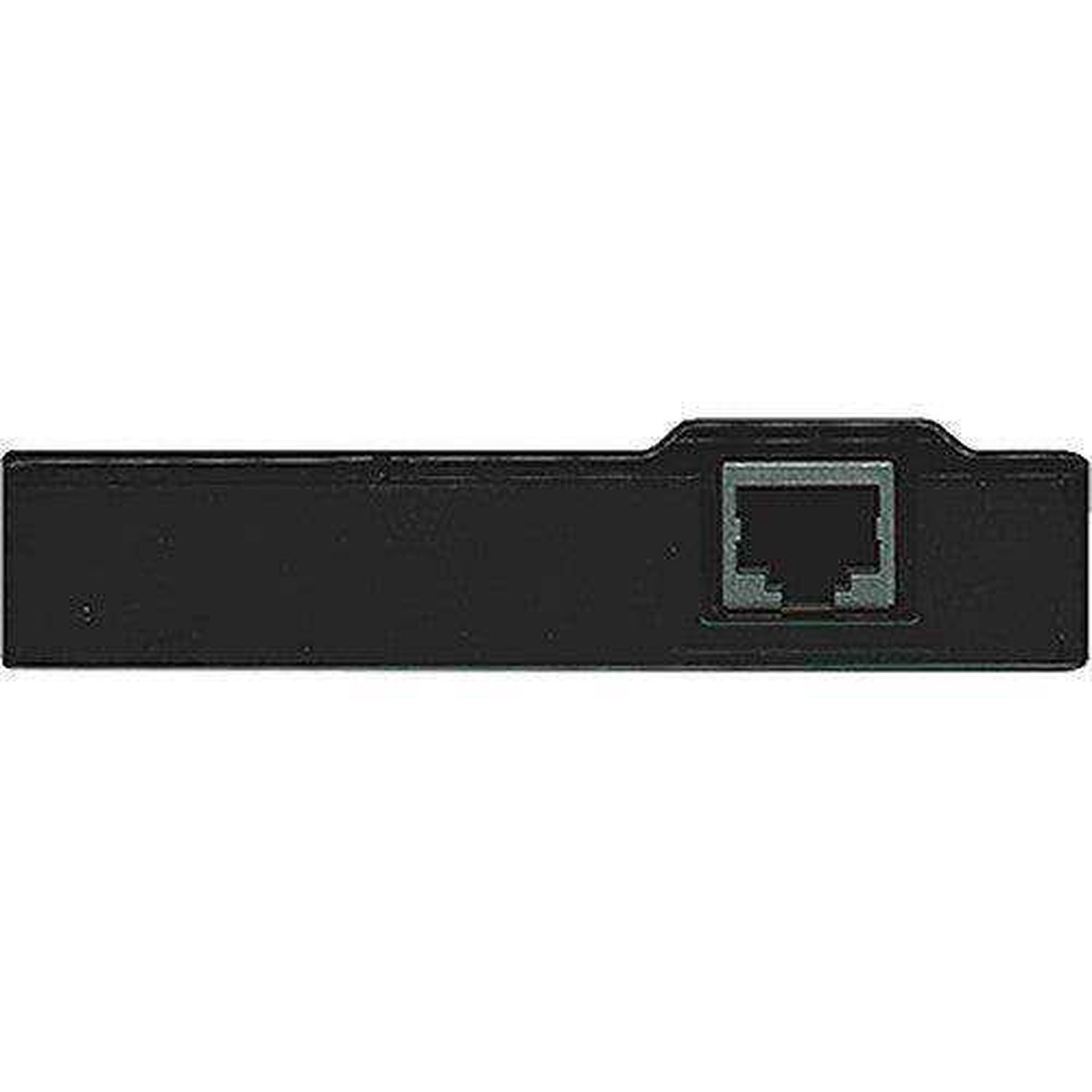

The Williams AV EXT-USB-4Port is a 4-port USB line driver that extends the distance between a touchscreen input device and a Pointmaker annotation system by up to 60 feet. Using a standard RJ45 cable (sold separately), the unit enables keyboard, tablet, or mouse inputs to reach the annotation system from across a room, eliminating the need for long USB cable runs or proximity mounting. It is a direct accessory for Williams AV Pointmaker annotation systems.

Product Description

Pointmaker annotation systems require USB input devicestypically a keyboard, tablet, or mouseto operate the touchscreen overlay interface. When the presenter position or input device location is more than standard USB cable range from the system rack or mount, the EXT-USB-4Port provides the extension infrastructure. The unit uses RJ45 cabling to extend four USB 3.0-compatible ports up to 60 feet from the host system, using software drivers to maintain device recognition and input fidelity over the extended run. The four USB Type-A ports on the remote end accommodate multiple simultaneous input devices. Installation requires a separately purchased RJ45 cable run between the EXT-USB-4Port unit and the Pointmaker system. This is a targeted accessory for Williams AV Pointmaker installations where the control position is not adjacent to the system hardware.

Key Features

• 60-Foot USB Extension Extends USB input device connections up to 60 feet from the Pointmaker annotation system using RJ45 cabling.
• 4 x USB Type-A Ports Four ports accommodate keyboard, tablet, mouse, and additional input devices simultaneously.
• RJ45 Cable Extension Uses standard Cat5e/6 RJ45 cabling for the extension run (cable sold separately).
• Software Driver Operation Driver-based USB extension maintains device recognition and input performance over the extended distance.
• Pointmaker System Compatibility Designed specifically for Williams AV Pointmaker annotation system deployments.
