Product Overview

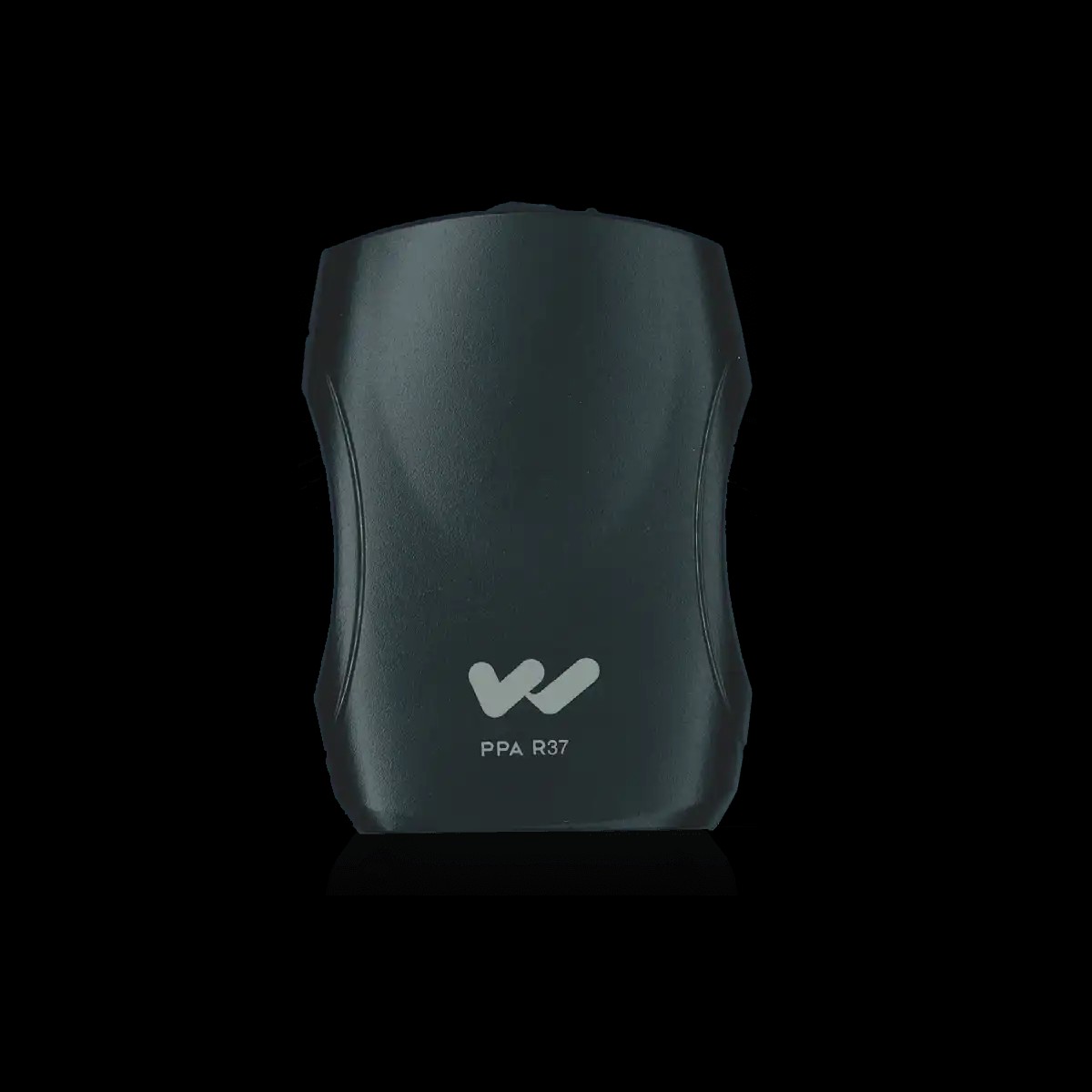

The Williams AV FM R37 is a body-pack FM assistive listening receiver supplied with an EAR 022 surround earphone and AA alkaline batteries, ready to hand to a listener the moment it leaves the box. Seek-button channel selection gives access to all 17 preset wideband frequencies in the 7276 MHz band reserved for hearing assistance under the ADA, and the receiver is compatible with every Williams Sound 7276 MHz wideband transmitter. It is the standard fleet receiver for auditoriums, houses of worship, and conference facilities expanding an existing FM assistive listening system.

Product Description

The R37’s audio is digitally synthesized for clear, stable reception across all 17 channels. Channel selection is made with a seek button inside the battery compartment, and a channel-lock capability prevents listeners from accidentally changing channels mid-event a practical detail for venues that loan receivers to the public. A combination volume control and power on/off dial keeps operation simple, while a green LED indicates power, battery, and system status, flashing on low battery.

The 3.5 mm stereo/mono output jack accepts a wide range of earphones, headphones, and neckloops, making the receiver compatible with telecoil-equipped hearing aids when paired with a neckloop such as the NKL 001. The included EAR 022 surround earphone delivers 118 dB sensitivity at 1 kHz with a 23 mm driver. Housed in impact-resistant PC/ABS plastic with a hinged battery door and detachable belt clip, the receiver is built for fleet duty.

Power flexibility is built in: a slide switch in the battery compartment selects disposable alkaline or NiMH rechargeable operation, and charging contacts on the base work with Williams Sound CHG 3502 and CHG 3512 drop-in chargers. Expect approximately 50 hours per pair of AA alkaline cells or 32 hours on NiMH rechargeables. A battery-saving sleep mode extends runtime further. Note: the receiver requires a transmitter operating on 7276 MHz and is FCC-approved for U.S. markets.

Pair the R37 with the FM T55C FM+ transmitter or any 7276 MHz Williams Sound system, and browse the Williams AV collection for chargers, neckloops, and replacement earphones.

Key Features

• 17 Wideband Channels Seek-button selection covers every preset frequency in the 7276 MHz band reserved for ADA hearing assistance.
• Universal Transmitter Compatibility Works with all Williams Sound 7276 MHz wideband transmitters, including legacy PPA and current FM+ systems.
• Digitally Synthesized Tuning Delivers stable, drift-free reception with 65 dB minimum signal-to-noise ratio for clear speech.
• Channel Lock Prevents loaned receivers from being knocked off the house channel during an event.
• Dual Battery Operation A slide switch selects alkaline (approx. 50 hours) or NiMH rechargeable (approx. 32 hours) power, with base contacts for drop-in chargers.
• Hearing Aid Compatible Output The 3.5 mm stereo/mono jack supports earphones, headphones, and telecoil neckloops.
• EAR 022 Earphone Included Around-ear speaker with 23 mm driver and 118 dB sensitivity ships in the box along with AA alkaline batteries.
• Fleet-Ready Construction Impact-resistant PC/ABS housing, hinged battery door, detachable belt clip, and low-battery indicator stand up to daily public loan use.
• Lifetime PLUS Limited Warranty Receiver electronics are covered for life, excluding earphones, headphones, and batteries.

Technical Specifications
