Product Overview

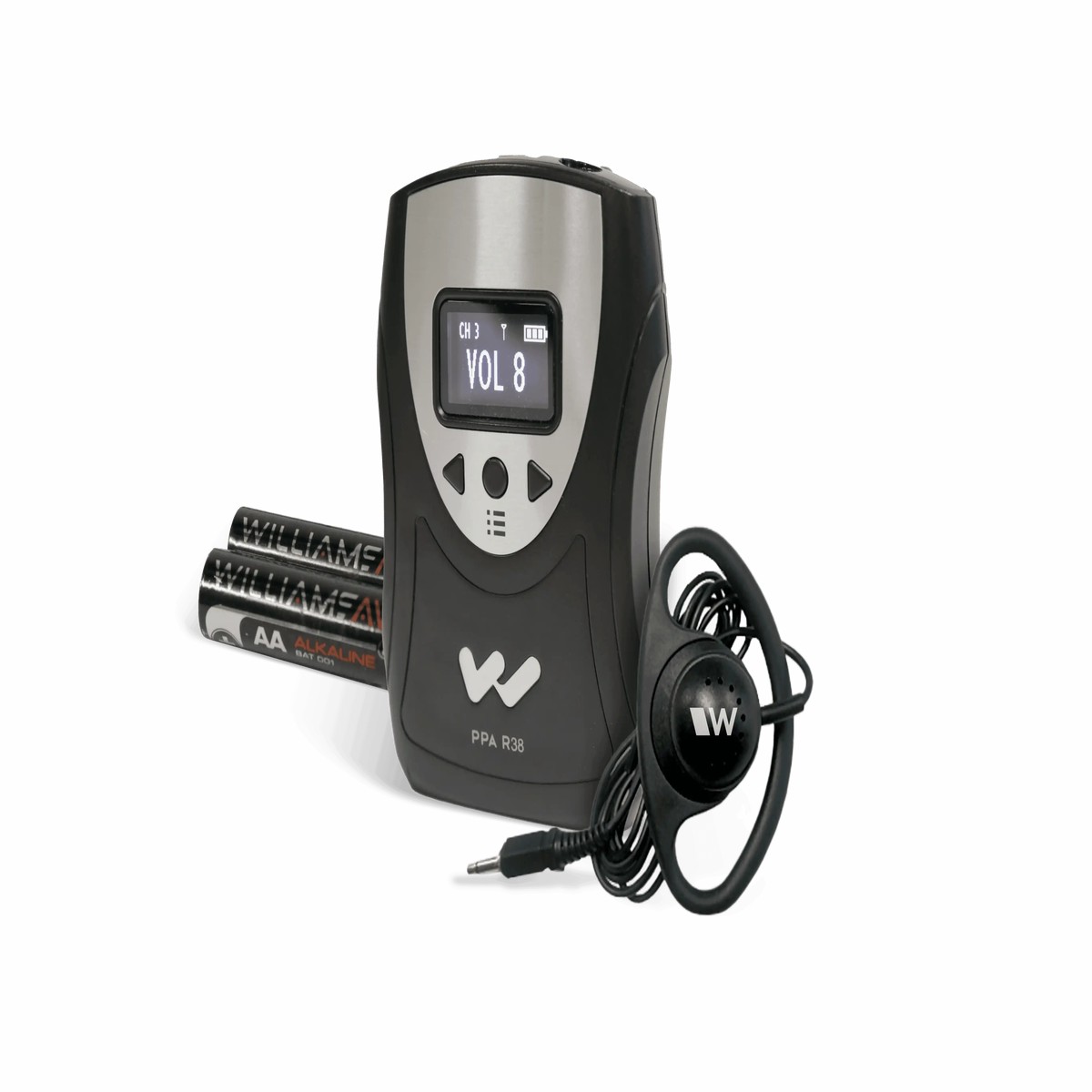

The Williams AV FM R38 is a multi-channel FM assistive listening receiver with a high-resolution OLED screen, supplied as a complete kit with an EAR 022 surround earphone and AA alkaline batteries. On-screen channel selection gives quick access to all 17 preset wideband frequencies in the 7276 MHz hearing assistance band, and the receiver works with every Williams Sound 7276 MHz wideband transmitter. For venues upgrading an FM assistive listening fleet, the R38 adds a modern menu-driven interface to the proven body-pack format.

Product Description

The standout feature of the R38 is its 1-inch high-resolution OLED display, which gives staff and listeners a quick view of receiver status channel or frequency, digital volume level, and a 4-step battery indicator plus immediate entry to all user settings through the on-screen menu. A step/seek function lets users increment channels manually or seek directly to the next active channel, and channel-lock capability keeps loaned receivers on the house frequency during events.

Audio is digitally synthesized for clear, stable reception, with digital tuning, digital squelch, and a battery-saving sleep mode with auto-off. Soft audio turn-on avoids startling listeners when the unit powers up. The R38 adds a stereo headphone jack alongside mono compatibility, broadening support for earphones, headphones, and neckloops including telecoil neckloops for hearing aid users. The included EAR 022 around-ear earphone delivers 118 dB sensitivity from a 23 mm driver.

Like the rest of the Williams Sound body-pack line, the R38 is housed in impact-resistant PC/ABS plastic here with an aluminum faceplate with a hinged battery door, detachable belt clip, and a slide switch to select alkaline or NiMH rechargeable battery operation. Base charging contacts work with CHG 3502 and CHG 3512 drop-in chargers. Runtime is approximately 50 hours on AA alkaline cells or 32 hours on NiMH rechargeables. The receiver requires a 7276 MHz transmitter and is FCC-approved for U.S. markets.

Outfitting a larger venue? The PPA R38-20 twenty-receiver bundle covers fleet deployments, and the Williams AV collection stocks compatible transmitters, chargers, and neckloops.

Key Features

• High-Resolution OLED Display A 1-inch screen shows channel or frequency, volume, and battery level at a glance, with menu access to every user setting.
• 17 Wideband Channels On-Screen Menu-driven selection covers all preset frequencies in the 7276 MHz ADA hearing assistance band.
• Universal Transmitter Compatibility Works with all Williams Sound 7276 MHz wideband transmitters, from legacy PPA models to current FM+ systems.
• Step/Seek Tuning Users can change channels manually or seek straight to the next active broadcast.
• Digital Tuning and Squelch Digitally synthesized reception holds a stable, clear signal with 65 dB minimum signal-to-noise ratio.
• Stereo and Mono Output The 3.5 mm stereo jack supports a wide range of earphones, headphones, and telecoil neckloops for hearing aid users.
• Dual Battery Operation A slide switch selects alkaline (approx. 50 hours) or NiMH rechargeable (approx. 32 hours) power, with base contacts for drop-in chargers.
• Battery-Saving Sleep Mode Auto-off and a 4-step battery indicator stretch runtime and flag receivers that need charging.
• Complete Kit Ships with an EAR 022 surround earphone and AA alkaline batteries, ready to deploy on arrival.
• Lifetime PLUS Limited Warranty Receiver electronics are covered for life, with 90 days on most accessories.
