Product Overview

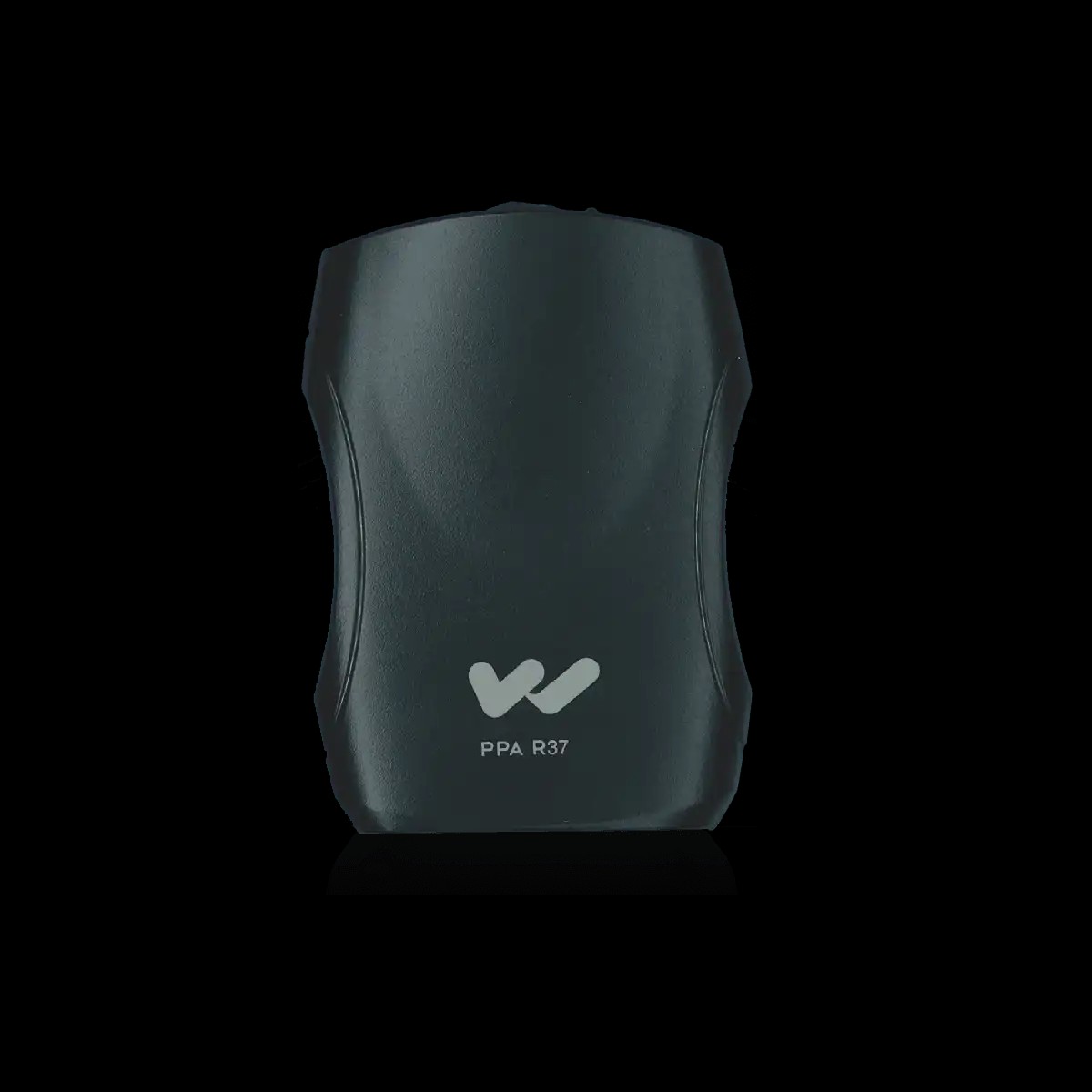

The Williams AV PPA R37 is a 17-channel FM assistive listening receiver supplied with batteries and an EAR 013 single earphone, ready to hand to a listener the moment it arrives. Operating on the 72-76 MHz wideband frequencies reserved for hearing assistance under the ADA, it works with all Williams Sound wideband FM transmitters, making it the standard replacement and expansion receiver for FM assistive listening systems in commercial venues, classrooms, and houses of worship.

Product Description

The R37 uses digitally synthesized tuning for stable, clear audio across all 17 preset wideband channels, selected via a seek button inside the battery compartment. Channel-lock capability keeps the receiver on the house frequency so audience members cannot accidentally retune it. A combination volume control with power on/off dial and a green LED status indicator keep day-to-day operation simple for venue staff and listeners alike.

The 3.5 mm stereo/mono output jack accepts the included earbud as well as headphones and neckloops, so telecoil-equipped hearing aid users can couple directly to the broadcast a key requirement for ADA-compliant assistive listening provision. A battery-saving sleep mode engages after approximately six minutes without an RF signal, and the receiver runs up to 50 hours on two AA alkaline batteries or up to 32 hours on NiMH rechargeables using an internal battery-type switch and bottom contacts for Williams Sound drop-in chargers.

Building out a full system? Pair the R37 with the PPA T46 bodypack transmitter or browse multi-receiver bundles and transmitters in the Williams AV collection at Creation Networks.

Key Features

• 17-Channel Seek-Button Tuning Access all 17 preset wideband frequencies in the 72-76 MHz hearing assistance band via the seek button in the battery compartment.
• Universal Transmitter Compatibility The receiver works with every Williams Sound 72-76 MHz wideband FM transmitter, simplifying fleet expansion and replacement.
• Channel-Lock Capability Lock the receiver to the venue channel to prevent accidental retuning by listeners.
• Hearing Aid Compatible Output The 3.5 mm stereo/mono jack supports earphones, headphones, and neckloops for telecoil-equipped hearing aids.
• Long Battery Life Up to 50 hours of operation on two AA alkaline batteries, with a low-battery indicator for easy pre-event checks.
• Rechargeable Ready A battery-type slide switch and bottom charging contacts support NiMH batteries with CHG 3502 or CHG 3512 drop-in chargers.
• Battery-Saving Sleep Mode The receiver enters sleep mode after about six minutes without an RF signal to extend battery life.
• Lifetime PLUS Limited Warranty Impact-resistant PC/ABS bodypack construction is backed by the Williams AV Lifetime PLUS Limited Warranty.
